GR5526 (3)-Generate font resources for Lvgl specification
[TOC]
This paper mainly introduces the use of GDX _ font _ conv to generate font resources in line with GR5526 GPU Lvgl specification, and the preparation and development of font resources.
1. Tool introduction

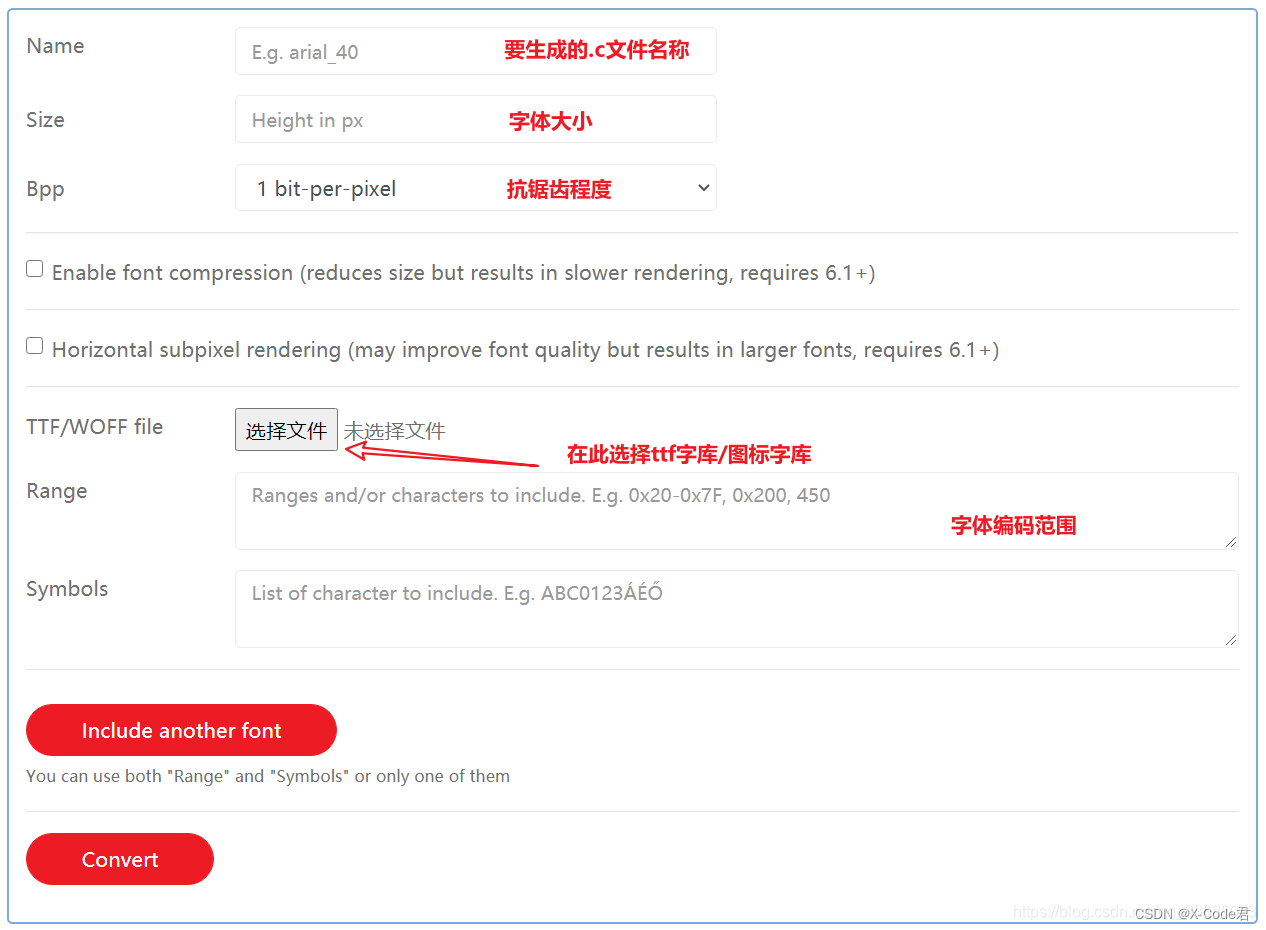

Lvgl official website provides a font resource conversion tool (https://lvgl.io/tools/fontconverter), which is used to generate bitmap fonts that conform to native lvgl rendering specifications.
The native Lvgl font uses the CPU to render the bitmap. When the font description bitmap is generated, it will be compressed in order to save storage space. On GR5526, in order to accelerate the rendering processing of fonts, the rendering interface of fonts is re-adapted and optimized based on GR5526 GPU. GPU rendering requires bitmap address alignment and even font width. Therefore, it is necessary to optimize the native font conversion tool of Lvgl, so that the font bitmap generated by it can meet the rendering requirements of GR5525 adapting to Lvgl.
The optimized font generation tool is repackaged as a GDX _ font _ conv. Exe, which can be run on the command line without installation.
List of supported commands:
--bpp - bits per pixel (antialiasing).像素深度：单个像素使用的bit数目
--size - output font size (pixels). 原始字体大小
—scale选项，用于基于—size选项字体位图，生成多个其他大小的字体，比如如下选项可通过16字号字体位图，同时支持16,18两个字号：
--scale 16,18
-o, --output - output path (file or directory, depends on format).输出文件
--format - output format. 输出格式，一般关心lvgl格式即可，另外有bin格式和dump格式
--format lvgl - dump font in lvgl c format.
--force-fast-kern-format - always use more fast kering storage format, at cost of some size. If size difference appears, it will be displayed.
总是使用更快的kerinng存储格式，代价是一些大小。 如果出现尺寸差异，则会显示出来。
--lcd - generate bitmaps with 3x horizontal resolution, for subpixel smoothing.
--lcd-v - generate bitmaps with 3x vertical resolution, for subpixel smoothing.
--use-color-info - try to use glyph color info from font to create grayscale icons. Since gray tones are emulated via transparency, result will be good on contrast background only.
--lv-include - only with --format lvgl, set alternate path for lvgl.h.
--font - path to font file (ttf/woff/woff2/otf). May be used multiple time for merge.字体文件
-r, --range - single glyph or range + optional mapping, belongs to previously declared --font. Can be used multiple times. Examples:
单个字形或范围 + 可选映射，属于先前声明的 --font。 可以多次使用。 例子：
-r 0x1F450 - single value, dec or hex format.
-r 0x1F450-0x1F470 - range.
-r '0x1F450=>0xF005' - single glyph with mapping.
-r '0x1F450-0x1F470=>0xF005' - range with mapping.
-r 0x1F450 -r 0x1F451-0x1F470 - 2 ranges.
-r 0x1F450,0x1F451-0x1F470 - the same as above, but defined with single -r.
--symbols - list of characters to copy (instead of numeric format in -r).
--symbols 0123456789., - extract chars to display numbers.
--autohint-off - do not force autohinting ("light" is on by default).
--autohint-strong - use more strong autohinting (will break kerning).
Additional debug options:
--no-compress - disable built-in RLE compression. 禁用内置 RLE 压缩。
--no-prefilter - disable bitmap lines filter (XOR), used to improve compression ratio. 禁用位图线过滤器 (XOR)，用于提高压缩率。
--no-kerning - drop kerning info to reduce size (not recommended).
--full-info - don't shorten 'font_info.json' (include pixels data).
2. Use of tools
2.1 Prepare Tools and Font Resources
Download good GDX _ font _ conv. Exe and font resources, here in the msyh. TTF Microsoft Yahei, for example. Place both in the same directory.
2.2. Generate bitmap source code files according to application requirements
The following command is used to generate the source code for the 0x20-0x7F ASCII characters with a BPP of 4 and a size of 16
gdx_font_conv.exe --no-compress --no-prefilter --bpp 4 --size 16 --font msyh.ttf -r 0x20-0x7F --format lvgl -o lv_font_msyh_16.c --force-fast-kern-format
The generated source file is the lv _ font _ msyh _ 16.c.
/*******************************************************************************
* Base Size: 16 px
* Bpp: 4
* Cmd-Opts: --no-compress --no-prefilter --bpp 4 --size 16 --font msyh.ttf -r 0x20-0x7F --format lvgl -o lv_font_msyh_16.c --force-fast-kern-format
******************************************************************************/
#ifdef LV_LVGL_H_INCLUDE_SIMPLE
#include "lvgl.h"
#else
#include "../../lvgl.h"
#endif
#ifndef LV_FONT_MSYH_12
#if GR552X_GPU_FONT_SUPPORT
#define LV_FONT_MSYH_12 1
#else
#define LV_FONT_MSYH_12 0
#endif
#endif
#if LV_FONT_MSYH_12
/*-----------------
* BITMAPS
*----------------*/
/*Store the image of the glyphs*/
static LV_ATTRIBUTE_LARGE_CONST const uint8_t glyph_bitmap[] __attribute__((aligned(32))) = {
/* U+0020 " " */
/* U+0021 "!" */
0x4f, 0x40, 0x4f, 0x40, 0x4f, 0x30, 0x3f, 0x30,
0x3f, 0x30, 0x3f, 0x20, 0x3f, 0x20, 0x2f, 0x20,
0x1d, 0x10, 0x0, 0x0, 0x4f, 0x40, 0x4f, 0x40,
/* U+0022 "\"" */
0x5f, 0x6f, 0x40, 0x3f, 0x4f, 0x30, 0x2f, 0x1f,
0x20, 0x1c, 0xd, 0x10,
/* U+0023 "#" */
0x0, 0x1, 0xf1, 0xd, 0x40, 0x0, 0x5, 0xd0,
0x1f, 0x0, 0x0, 0x8, 0x90, 0x5c, 0x0, 0xf,
0xff, 0xff, 0xff, 0xfb, 0x0, 0xf, 0x30, 0xb6,
0x0, 0x0, 0x1f, 0x0, 0xe3, 0x0, 0x0, 0x4d,
0x1, 0xf1, 0x0, 0x9f, 0xff, 0xff, 0xff, 0xf2,
0x0, 0xb7, 0x7, 0xa0, 0x0, 0x0, 0xe3, 0xb,
0x60, 0x0, 0x2, 0xf0, 0xf, 0x20, 0x0, 0x0,
。。。。
/* U+007D "}" */
0x6d, 0x50, 0x0, 0x19, 0xf1, 0x0, 0x1, 0xf3,
0x0, 0x1, 0xf4, 0x0, 0x1, 0xf4, 0x0, 0x0,
0xf4, 0x0, 0x0, 0xd9, 0x0, 0x0, 0x3f, 0x90,
0x0, 0xcb, 0x10, 0x0, 0xf4, 0x0, 0x1, 0xf4,
0x0, 0x1, 0xf4, 0x0, 0x1, 0xf3, 0x0, 0x6,
0xf1, 0x0, 0x6f, 0x70, 0x0, 0x0, 0x0, 0x0,
/* U+007E "~" */
0x0, 0x0, 0x0, 0x0, 0x0, 0x3, 0xde, 0x70,
0x2, 0xf0, 0xd, 0x85, 0xeb, 0x28, 0xd0, 0x2f,
0x0, 0x1b, 0xff, 0x40, 0x2, 0x0, 0x0, 0x20,
0x0, 0x0, 0x0, 0x0,
/* U+007F "" */
};
/*---------------------
* GLYPH DESCRIPTION
*--------------------*/
static const lv_font_fmt_txt_glyph_dsc_t glyph_dsc[] = {
{.bitmap_index = 0, .adv_w = 0, .box_w = 0, .box_h = 0, .ofs_x = 0, .ofs_y = 0} /* id = 0 reserved */,
{.bitmap_index = 0, .adv_w = 76, .box_w = 0, .box_h = 0, .ofs_x = 0, .ofs_y = 0},
{.bitmap_index = 0, .adv_w = 80, .box_w = 3, .box_h = 12, .ofs_x = 1, .ofs_y = 0},
。。。。
{.bitmap_index = 4464, .adv_w = 136, .box_w = 9, .box_h = 13, .ofs_x = 0, .ofs_y = -4},
{.bitmap_index = 4532, .adv_w = 126, .box_w = 8, .box_h = 9, .ofs_x = 0, .ofs_y = 0},
{.bitmap_index = 4568, .adv_w = 86, .box_w = 5, .box_h = 16, .ofs_x = 0, .ofs_y = -4},
{.bitmap_index = 4616, .adv_w = 69, .box_w = 2, .box_h = 18, .ofs_x = 1, .ofs_y = -4},
{.bitmap_index = 4636, .adv_w = 86, .box_w = 5, .box_h = 16, .ofs_x = 0, .ofs_y = -4},
{.bitmap_index = 4684, .adv_w = 190, .box_w = 10, .box_h = 5, .ofs_x = 1, .ofs_y = 3},
{.bitmap_index = 4712, .adv_w = 76, .box_w = 0, .box_h = 0, .ofs_x = 0, .ofs_y = 0}
};
/*---------------------
* CHARACTER MAPPING
*--------------------*/
/*Collect the unicode lists and glyph_id offsets*/
static const lv_font_fmt_txt_cmap_t cmaps[] =
{
{
.range_start = 32, .range_length = 96, .glyph_id_start = 1,
.unicode_list = NULL, .glyph_id_ofs_list = NULL, .list_length = 0, .type = LV_FONT_FMT_TXT_CMAP_FORMAT0_TINY
}
};
/*-----------------
* KERNING
*----------------*/
/*Map glyph_ids to kern left classes*/
static const uint8_t kern_left_class_mapping[] =
{
0, 0, 0, 1, 0, 0, 0, 0,
1, 2, 0, 3, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 4, 5, 6, 7, 8, 9,
10, 0, 0, 11, 12, 13, 0, 0,
14, 15, 16, 17, 18, 19, 20, 21,
22, 23, 24, 25, 2, 0, 0, 0,
0, 0, 0, 26, 27, 0, 28, 29,
30, 0, 0, 31, 32, 0, 0, 28,
33, 34, 35, 36, 0, 37, 38, 39,
40, 41, 42, 0, 43, 0, 0, 0,
0
};
/*Map glyph_ids to kern right classes*/
static const uint8_t kern_right_class_mapping[] =
{
0, 0, 0, 1, 0, 0, 0, 0,
1, 0, 2, 3, 0, 4, 5, 6,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 7, 8, 0, 0, 0,
9, 0, 10, 0, 11, 0, 0, 0,
12, 0, 0, 13, 0, 0, 0, 0,
14, 0, 15, 0, 16, 17, 18, 19,
20, 21, 22, 23, 0, 0, 2, 0,
0, 0, 24, 25, 26, 27, 28, 29,
30, 25, 0, 31, 0, 0, 32, 32,
33, 34, 35, 36, 37, 38, 34, 39,
40, 41, 42, 43, 0, 0, 44, 0,
0
};
/*Kern values between classes*/
static const int8_t kern_class_values[] =
{
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
。。。。
0, 0, 0, 0, 0, -1, -1, -1,
1, -1, 0, 0, -1, 0, -1, 0,
0, 1, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 27, 0,
0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0
};
/*Collect the kern class' data in one place*/
static const lv_font_fmt_txt_kern_classes_t kern_classes =
{
.class_pair_values = kern_class_values,
.left_class_mapping = kern_left_class_mapping,
.right_class_mapping = kern_right_class_mapping,
.left_class_cnt = 43,
.right_class_cnt = 44,
};
/*--------------------
* ALL CUSTOM DATA
*--------------------*/
#if LV_VERSION_CHECK(8, 0, 0)
/*Store all the custom data of the font*/
static lv_font_fmt_txt_glyph_cache_t cache;
static const lv_font_fmt_txt_dsc_t font_dsc = {
#else
static lv_font_fmt_txt_dsc_t font_dsc = {
#endif
.glyph_bitmap = glyph_bitmap,
.glyph_dsc = glyph_dsc,
.cmaps = cmaps,
.kern_dsc = &kern_classes,
.kern_scale = 16,
.cmap_num = 1,
.bpp = 4,
.kern_classes = 1,
.bitmap_format = 0,
#if LV_VERSION_CHECK(8, 0, 0)
.cache = &cache
#endif
};
/*-----------------
* PUBLIC FONT
*----------------*/
/*Initialize a public general font descriptor*/
#if LV_VERSION_CHECK(8, 0, 0)
lv_font_t lv_font_msyh_12 = {
#else
lv_font_t lv_font_msyh_12 = {
#endif
.get_glyph_dsc = lv_font_get_glyph_dsc_fmt_txt, /*Function pointer to get glyph's data*/
.get_glyph_bitmap = lv_font_get_bitmap_fmt_txt, /*Function pointer to get glyph's bitmap*/
.line_height = 18, /*The maximum line height required by the font*/
.base_line = 4, /*Baseline measured from the bottom of the line*/
#if !(LVGL_VERSION_MAJOR == 6 && LVGL_VERSION_MINOR == 0)
.subpx = LV_FONT_SUBPX_NONE,
#endif
#if LV_VERSION_CHECK(7, 4, 0) || LVGL_VERSION_MAJOR >= 8
.underline_position = -1,
.underline_thickness = 1,
#endif
.dsc = &font_dsc, /*The custom font data. Will be accessed by `get_glyph_bitmap/dsc` */
.origin_dsc = &font_dsc,
.origin_line_height = 18,
.origin_base_line = 4,
};
#endif /*#if LV_FONT_MSYH_12*/
The following reference commands generate various characters, including numbers, letters, and parts of Chinese
gdx_font_conv.exe --no-compress --no-prefilter --bpp 4 --size 36 --font font/msyh.ttf --symbols 1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz文抬腕触摸亮屏自动屏幕显示应用视图过场效果语言系统关于调试模式开关系统升级关机重新启动恢复出厂设置亮度熄屏时间唤醒方式更换表盘完成重新测量中运动今日活动心率血氧压力睡眠呼吸训练天气音乐卡包闹钟秒表计时器寻找手机 --format lvgl -o lv_font_msyh_36.c
If you need to add/modify the text content, you can use the command to generate it again.
2.Embed the generated.c source code into the lvgl application project
And configure the function macro switch of the corresponding font, it can be used in the UI layout of the GR5526 project.
3. Other considerations
If the Keil IDE environment is used for development, the following configuration is required to enable KEIL to support the correct encoding of Chinese fonts and the correct display of fonts:
Options for Target-> C/C + +-> Misc Controls added in KEIL –locale = English
In the editor, select UTF-8 encoding. Edit-> Configuration-> Encode in UTF-8 without signature
