IAR Application Notes

1. Basic Introduction

  • IAR Embedded Workbench (hereinafter referred to as IAR) is an integrated development environment (IDE) designed for embedded system development provided by IAR Systems, including compiler, debugger, optimizer and other tools, which can help developers to develop embedded software quickly and efficiently.

  • GR5xx series SDK supports building and debugging through IAR. Different chipset SDKs have different levels of support for different versions of IAR, see the table below for specific support:

Chip Series SDK Version Recommended IAR Version
GR551x All versions IAR 9.40.1
GR5525 All Versions IAR 9.40.1
GR5526 All Versions IAR 9.40.1
GR533x All Versions IAR 9.40.1

2. Using GR5xx SDK in IAR

The following is an example of using the GR533x SDK with IAR Embedded Workbench 9.40.1, based on the projects\ble\ble_peripheral\ble_app_template_freertos sample project in the SDK, which describes how to use the GR5xx SDK.

2.1 Generating an IAR project based on a Keil project

The GR5525 SDK, GR5526 SDK and GR533x SDK all integrate IAR project files by default. For GR551x SDK with user’s own project, you need to convert Keil project to IAR project by the script tool provided by SDK. Please refer to “GR5xx IAR User’s Manual” for the specific conversion steps. “Generate IAR Project” section.

2.2 Configuration Debugging and Downloading

  1. Configure Flash Loader. locate the arm/config/flashloader folder under the IAR installation directory, and then create a new Goodix folder under the folder, as shown below:

../../_images/img-20240402163215.png

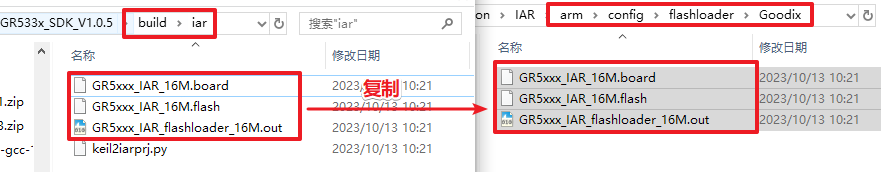

  1. Go to the ${SDK_Folder}/build/iar folder (where SDK_Folder is the root directory of the SDK) and copy the GR5xxx_IAR_16M.board, GR5xxx_IAR_16M.flash, GR5xxx_IAR_flashloader, and GR5xxx_IAR_16M.out in the folder. 16M.out_ files to the Goodix folder created earlier, as shown below:

../../_images/img-20240402164639.png

If you use GR551x SDK, the files you need to copy are GR55xx_IAR_8M.board, GR55xx_IAR_8M.flash, and GR55xx_IAR_flashloader_8M.out.

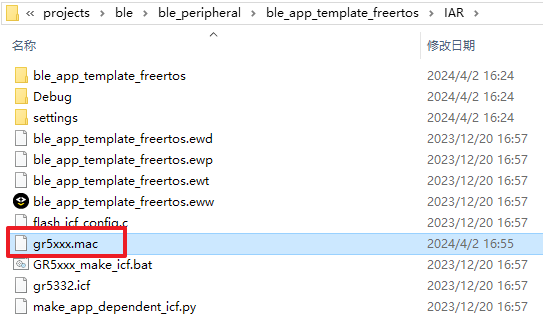

  1. Go to the IAR project directory for the ble_app_template_freertos example and create a gr5xxx.mac file in that project directory.


Write the following in the gr5xxx.mac file and save it:

execUserReset()
{
    #SP = __readMemory32(0x00000000, "Memory");
    #PC = __readMemory32(0x00000004, "Memory");
    __writeMemory32(0xE000ED08, 0x00000000, "Memory");
}

  1. Use IAR to open the project in the IAR folder in the sample project directory as shown below:

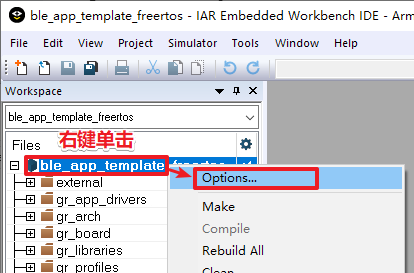

  1. Open the ble_app_template_freertos.eww project file using IAR. Right mouse click on the build target in IAR and click Options... to open the project settings window.

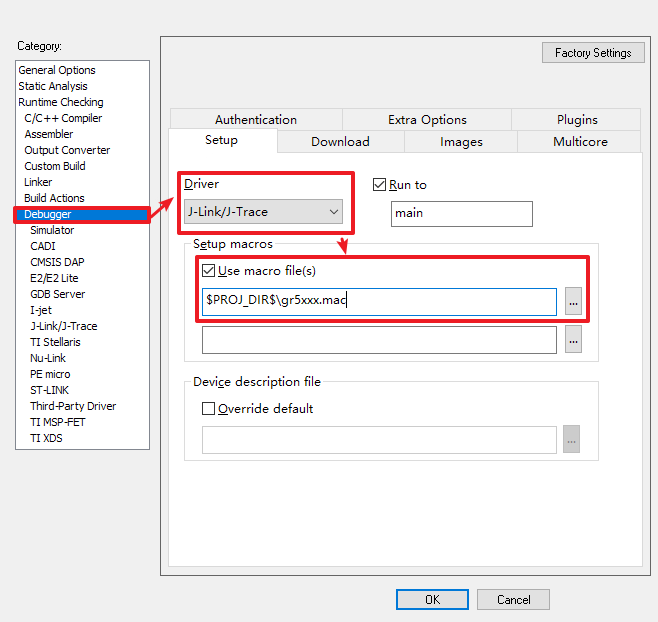

  1. In the Category on the left side of the setup window, click to check the Debugger option, set Driver to J-Link/J-Trace, check Use macro file(s) and enter $PROJ_DIR$\gr5xxx.mac in the file selection box below, as shown below:

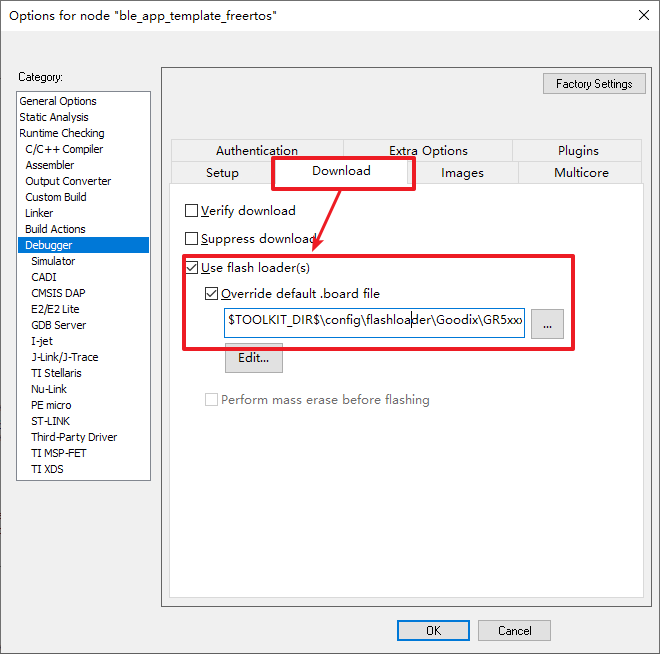

Switch to the Download tab, check Use flash loader(s), check Override default .board file, and enter $TOOLKIT_DIR$\config\flashloader\Goodix\GR5xxx_ in the file selection box below. IAR_16M.board, as shown below:


If you are using GR551x SDK, you need to replace GR5xxx_IAR_16M.board with GR55xx_IAR_8M.board in the above path.

  1. Click OK to complete the setup. Wait for IAR to update the project and then you can compile, download and debug it. Click the Download and Debug button in the IAR toolbar, or use the shortcut key Ctrl+D to trigger compile, download and debug in one click:

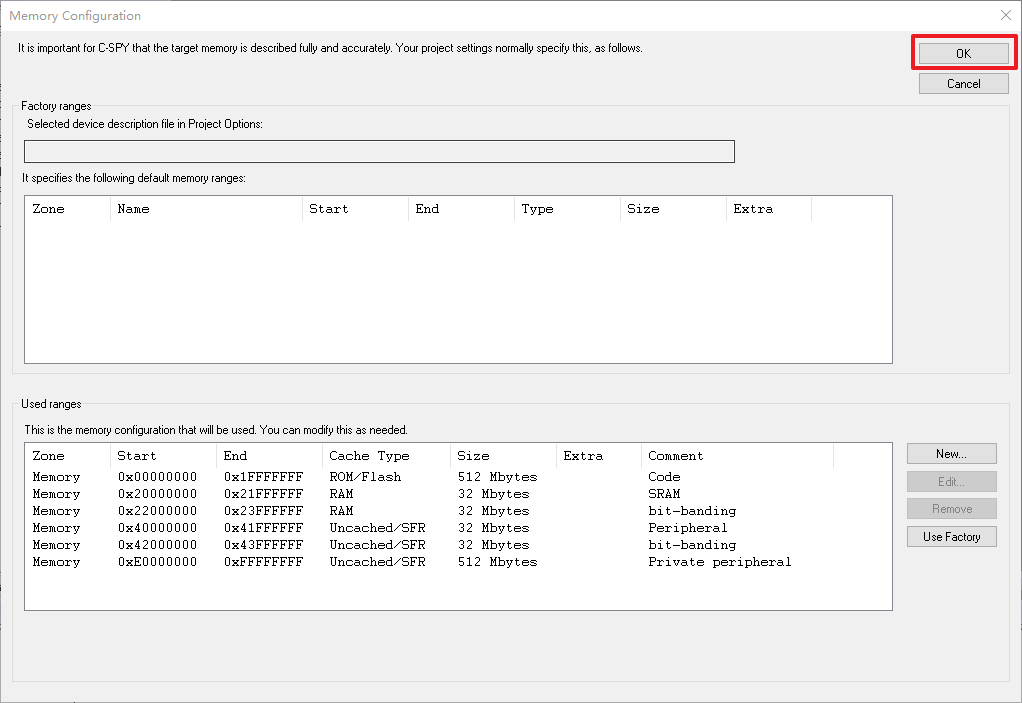

  1. After the compilation is complete, IAR will automatically download the firmware and start debugging. The first time that you use IAR for debugging download, there may be a popup window prompting The first time that you debug a project in C-SPY, you must setup or review the memory configuration. Click OK at this point and continue to click OK in the next window.

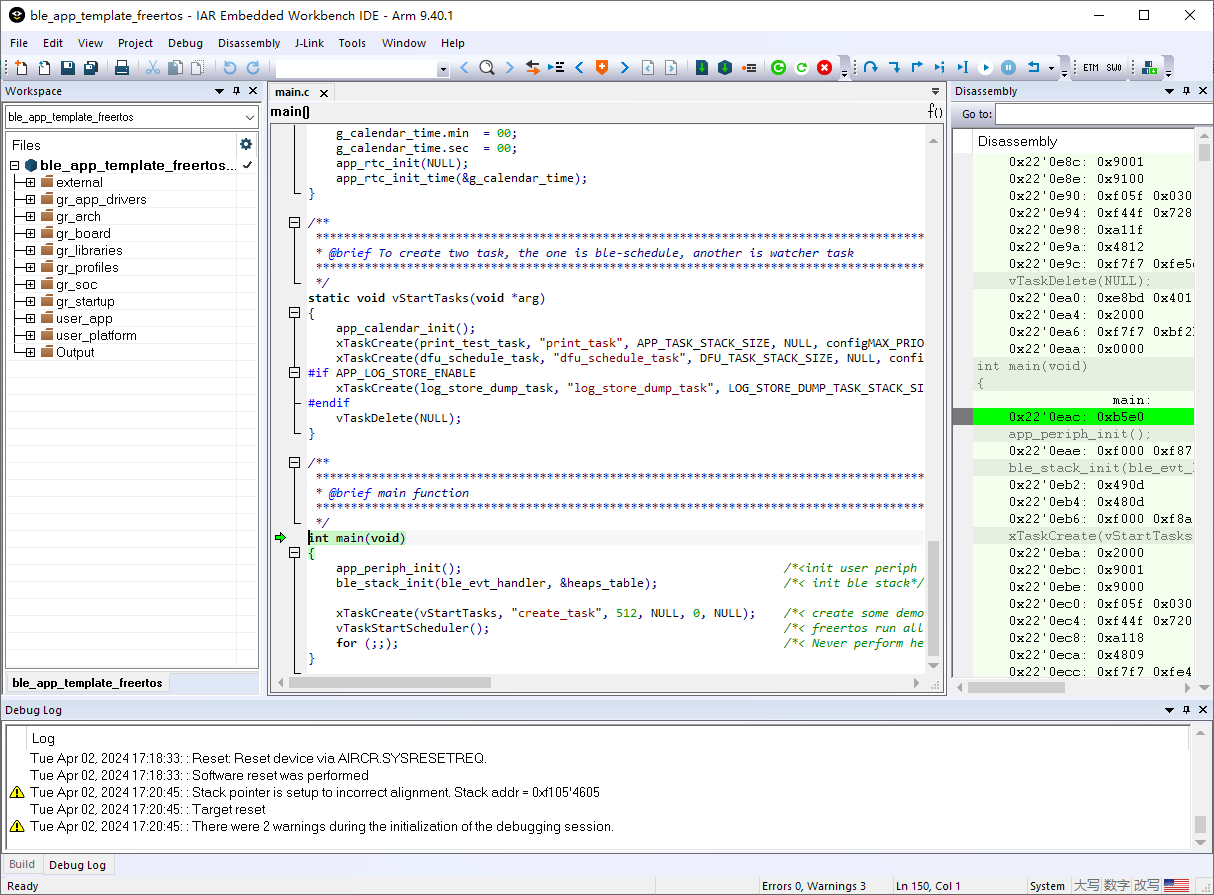

  1. Wait for the IAR firmware to finish downloading and then start debugging. When you start debugging, there may be a popup window prompting Warning: Stack pointer is setup to incorrect alignment. Stack addr = 0xf105'4605, just click the OK button, and the correct stack pointer will be loaded in the setup gr5xxx.mac file. Wait for the IAR to complete the initialization of the debug window and enter the debug mode correctly, then you can debug the application.
